High Speed Hydraulic Plastic Lid Compression Molding Machine (16-Cavity)

Price:	50000.0~70000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MF-40B-16

Production Capacity: 10 sets/month

Delivery Date: 40 days

Use: Others

Power: 21 KW

Cavity Number: 16

Cerification: CE

Cap Diameter: 15-60mm

Means of Transport: Ocean,Air

Packing: Standard Export Wooden Case

Plastic Type: PP/PE

Brand Name: Minfeng

Driven System: Hydraulic

Voltage: 380V, 50Hz

After-sale Serivice: Engineers available to serv...

Productivity: 8000-10000pcs/hr.

16-Cavity Cap Molding Machine
1.Hydraulic System
2.Long mold life
3.With Mould/Oil Pump/Chiller

Our factory is established in 1992 and our main products are compression cap molding machine,cap lining machine,cap slitting machine,cap folding machine,cap loading machine with annual output of 380 sets.Our production win excellent reputation at home and abroad because of the professional tech,good quality and perfect service.We'd like to do our best to help you to be a better competitor in your market.

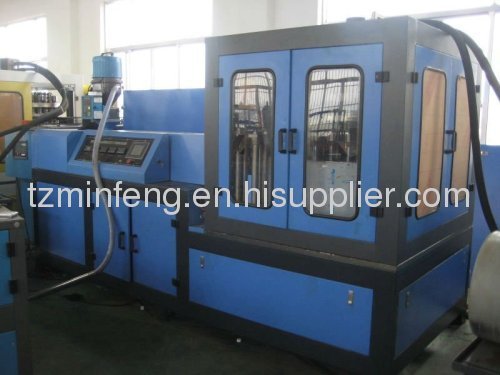

High Speed Hydraulic Plastic Lid Compression Molding Machine (16-Cavity)

This machine is particulary designed to produce various kinds of medicine, cosmetic and beverage bottle caps. It adopts hydraulic driven system which is a stable transmission supplying larger pressure for mould,and also equipped with computerized automatic temperature control and extruder speed matching device to adjust temprature and material. There are 16 to 48 cavities for your choice which depends on the detail of your productivity.

Bottle caps are made from plastic granular raw material which is fed via the hopper, fluidized with high temperature, and then forms die block that is extruded from the discharge outlet of the extruder, cut with the cutting tray, uniformly distributed into each die cavity and finally mould pressed.

Advantage

(1) Less cost and higher productivity
(2) Compared with plastic injection, the output can be increased three times
(3) Compents are easy to be assembled and disassembled
(4) Excellent in cap's quality, stable grammage and uniform wall thickness
(5) Quick mold changeover and less down time
(6) Optimized design, user-friendly touch screen control, adjustable speed of production

(7) Small space occupied,easy handle

Specification

1.	Cap Diameter	15-60 mm
2.	Cap Height	7-30 mm
3.	Productivity (about 20*30mm)	8000-10000 pcs/hr.
4.	The Power of the Extruder Heating Ring	11.8 KW
5.	The Power of the Extruder Electro-motor	7.5 KW
6.	The Power of the Electro-motor of the Molding Pression Machine	4 KW
7.	Installed Electrical Power	30 KW (50Hz)
8.	Consumed Electrical Power	21 KW
9.	Color	blue, yellow
10.	Size	3700(L)X1500(L)X2200(H) mm
