Compression Cap Molding Machine from China manufacturer - Taizhou City Huangyan Minfeng Bottle Cap Machinery Factory

Price:	48000.0~150000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MF-40B-36

Production Capacity: 10 Set/Sets / Month

Delivery Date: 45 day

Power: 32KW

Condition: New

Dimension(L*W*H): 3700X1500X2200mm

Certification: CE

Number of Cavity: 24

Driven Type: Hydraulic

Means of Transport: Ocean,Air

Packing: Strong Wooden Case

Brand Name: Minfeng

Capacity: 17000-19000 pcs/hr.

Voltage: 380V, 50Hz

Weight: 3200KG

After-sales Service Provided: Engineers available to serv...

Warranty: 1 year

Running Type: Full automatic

1-Full automatic
2-Advanced equipment
3-Best in price&quality&service
4-CE certificated

Our factory is established in 1992 and our main products are compression cap molding machine,cap lining machine,cap slitting machine,cap folding machine,cap loading machine with annual output of 380 sets.Our production win excellent reputation at home and abroad because of the professional tech,good quality and perfect service.We'd like to help you to be a better competitor in your market.

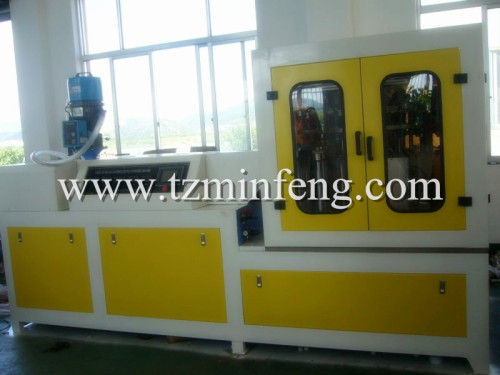

36-Cavity Cap Molding Macine for Mineral Water

36-Cavity Cap Molding Macine for Mineral Water

1.Description of Product

This machine is particulary designed to produce bootle cap for medicine, cosmetic and beverage. It adopts advanced system of hydraulic pump and computerized automatic temperature control. There are 16 to 48 cavities for your choice which depends on your productivity.

Bottle caps are made from plastic granular raw material which is fed via the hopper, fluidized with high temperature, and then forms die block that is extruded from the discharge outlet of the extruder, cut with the cutting tray, uniformly distributed into each die cavity and finally mould pressed.

2.Advantage

(1) Easy to handle, less cost and higher productivity
(2) Compared with plastic injection, the output can be increased three times
(3) Compents are easy to be assembled and disassembled
(4) Excellent in cap's quality, stable grammage and uniform wall thickness
(5) Quick mold changeover and less down time
(6) Optimized design, user-friendly touch screen control, adjustable speed of production

3.Specification

1.	Cap Diameter	15-60 mm
2.	Cap Height	7-30 mm
3.	Productivity (about 20*30mm)	17000-19000 pcs/hr.
4.	The Power of the Extruder Heating Ring	15 KW
5.	The Power of the Extruder Electro-motor	7.5 KW
6.	The Power of the Electro-motor of the Molding Pression Machine	4 KW
7.	Installed Electrical Power	45 KW (50Hz)
8.	Consumed Electrical Power	32 KW
9.	Color	blue, yellow
10.	Size	3700(L)X1500(W)X2200(H) mm
